Nanotec stepperdriver breakout

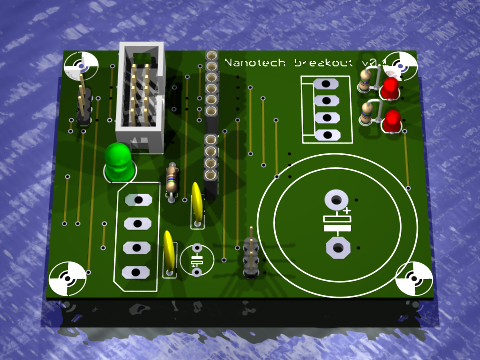

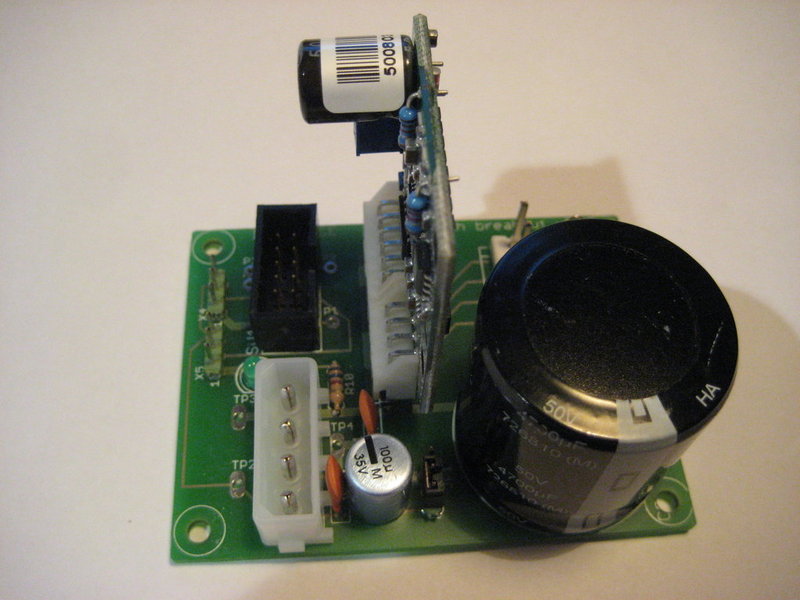

Now working on a small breakout board for the Nanotec microsteppercontroller. To be used in the RepRap 3D Printer.
For those interested, you can download the Eagle files (.zip 291 KB) The parts-list you can find on Thingiverse.

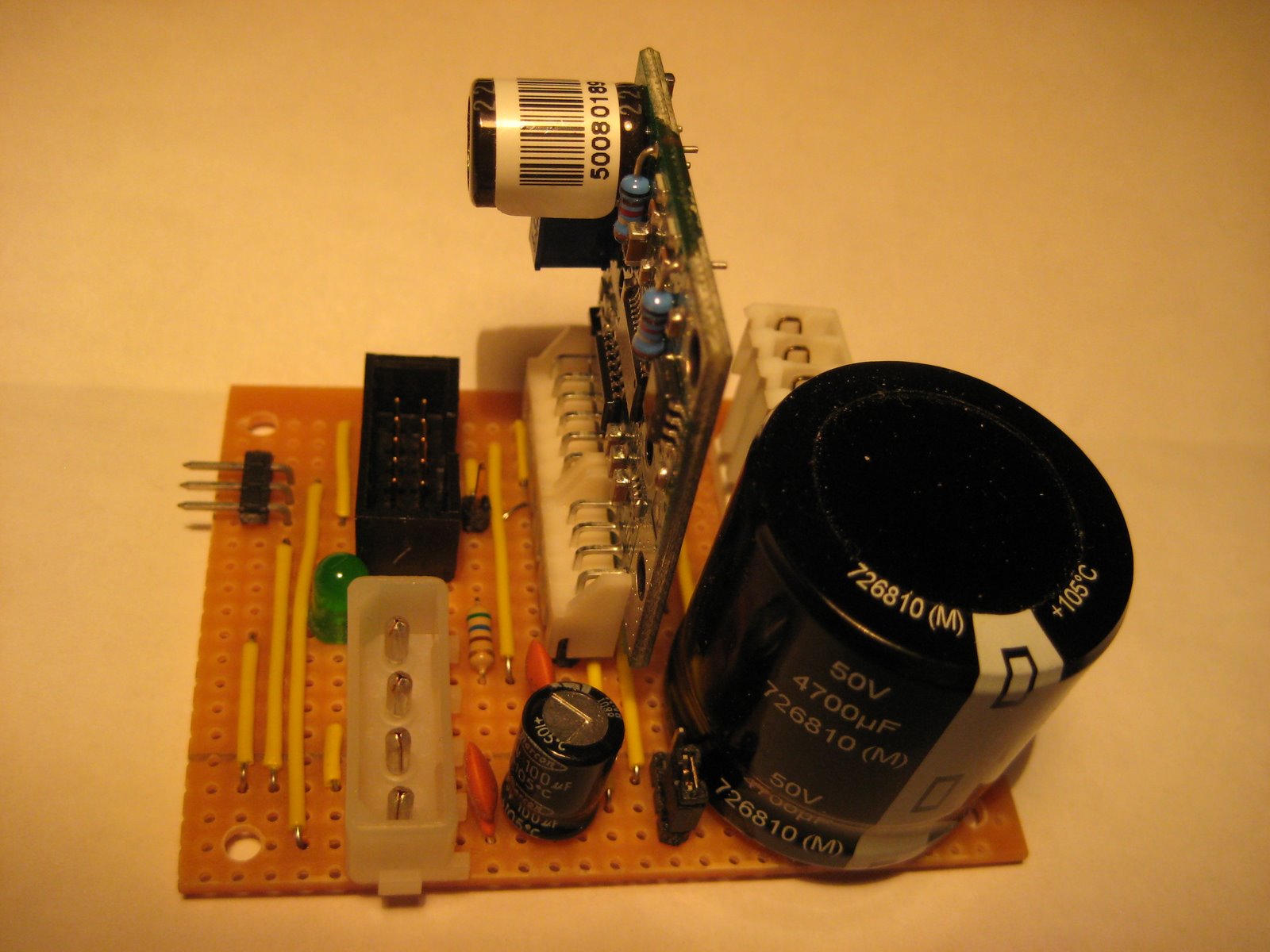

For the stripboard version: if you don't use stripboard, remove the holes and move all top tracks cq wires to the bottom layer, or ripup and autoroute all over again.
